I-10-intshi ye-Cutter Suction Dredger

I-Qingzhou Jinqi Mining Machinery Co., Ltd ngumvelisi ochwepheshile wezixhobo zokurhuqa e-China, onamava abanzi ekwenzeni i-cutter suction dredgers. I-10-intshi ye-cutter suction dredger yimveliso ye-flagship ye-Jinqi ekuthunyelweni kwezixhobo zokucoca ngaphandle.

Thumela uMbuzo

Ingcaciso yeMveliso

I-10-intshi ye-cutter suction dredger ithiywe ngegama lombhobho wokukhupha umbhobho wangaphakathi ubukhulu be-intshi ezili-10, ebonisa ngokuthe ngqo amandla okuhambisa izixhobo. Njengesixhobo esingundoqo sokugrumba umlambo, imigodi yesanti, ukuchithwa kwedama kunye nezinye izinto zokusebenza, ibonakalisa ukusebenza kakuhle okuphezulu, uzinzo kunye nokusebenza. Ngale mveliso, iQingzhou Jinqi Mining Machinery Co., Ltd. iye yaba ngumthengisi othembekileyo wezixhobo zokucoca kumashishini amaninzi obunjineli.

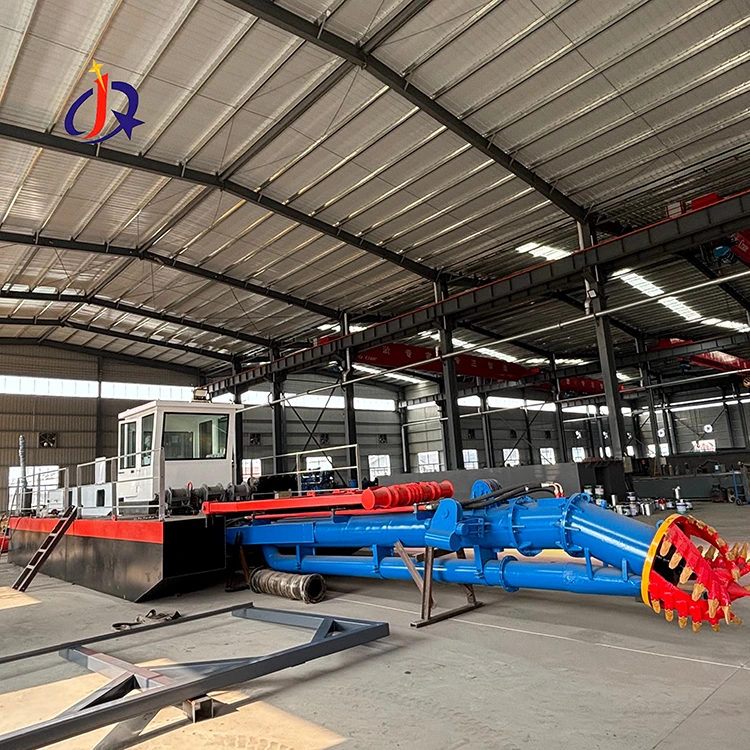

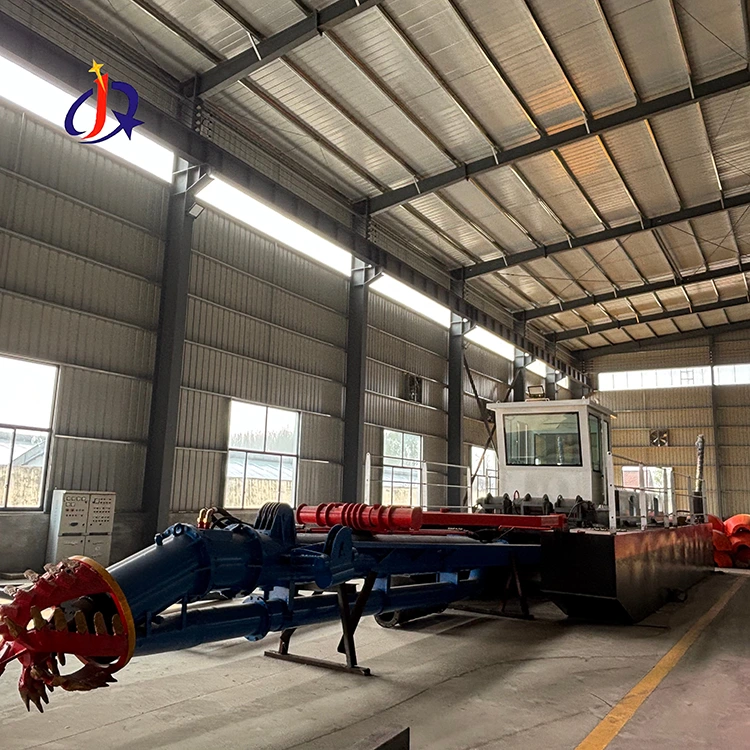

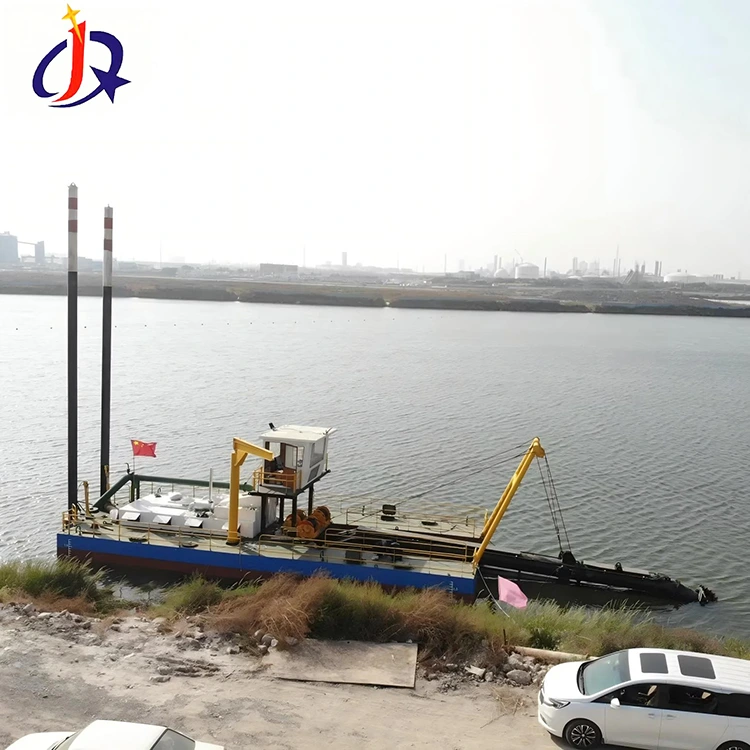

10-inch Cutter Suction Dredger

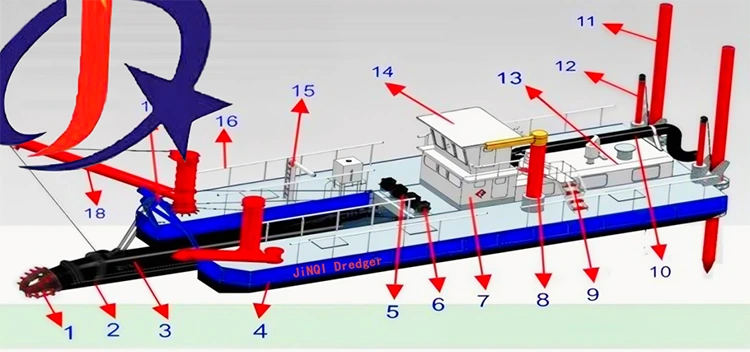

Ukwakhiwa kweMveliso

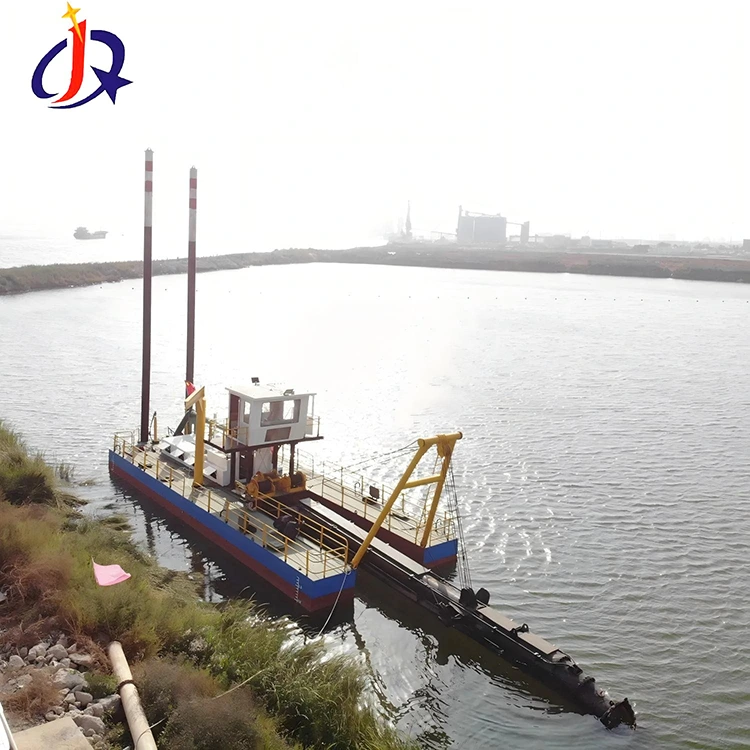

10-inch Cutter Suction Dredger

HAYI.	Igama	HAYI.	Igama	HAYI.	Igama
1	Umsiki	7	Igumbi lokuphumla	13	Injini Ipontoni
2	Umbhobho wokufunxa	8	Idekhi yeCrane	14	Ikhabhinethi yokuqhuba
3	Ileli yokusika	9	Ileli	15	Umlinganiselo wobunzulu
4	Ipontoni esecaleni	10	Umbhobho wokukhupha	16	Irali
5	Ileli Winch	11	Spud	17	Ileli Gantry
6	Swing Winch	12	Hydraulic Cylinder	18	Ankile Boom

Into yeParameter	Inkcazo esemgangathweni	Customizable Range
Ubunzulu bokwelula	10m	8--20m
Ukuhamba kwamanzi	1200m³	1000---1200m³
Ubuchule bokuphatha obuqinileyo	240m³	200----300m³
Umgama oKhulu wokukhupha	1500m³	1000---2000m³
IDimension iyonke	19.5×4.2×1.5m	16-20×3.8-4.5×1.2-1.8m
Ubunzima obupheleleyo	50t	35-60t
Injini engundoqo	Weichai, 500kw	Mitsubishi, 240-800kw
Intloko yomsiki	Ububanzi 900mm, Amandla 150kw	800-1000mm, 80-200kw; Amazinyo engxubevange/Amazinyo elitye
Ubude be-Anchor Boom	6m	5-7m
Spud Carrier Stroke	3m	2---4m
Inkqubo yeHydraulic	Rexroth	Yuken / Vickers Ngokuzikhethela
Impompo yesanti	Shijiazhuang Industrial Factory	High Wear-Resistance Version Customizable

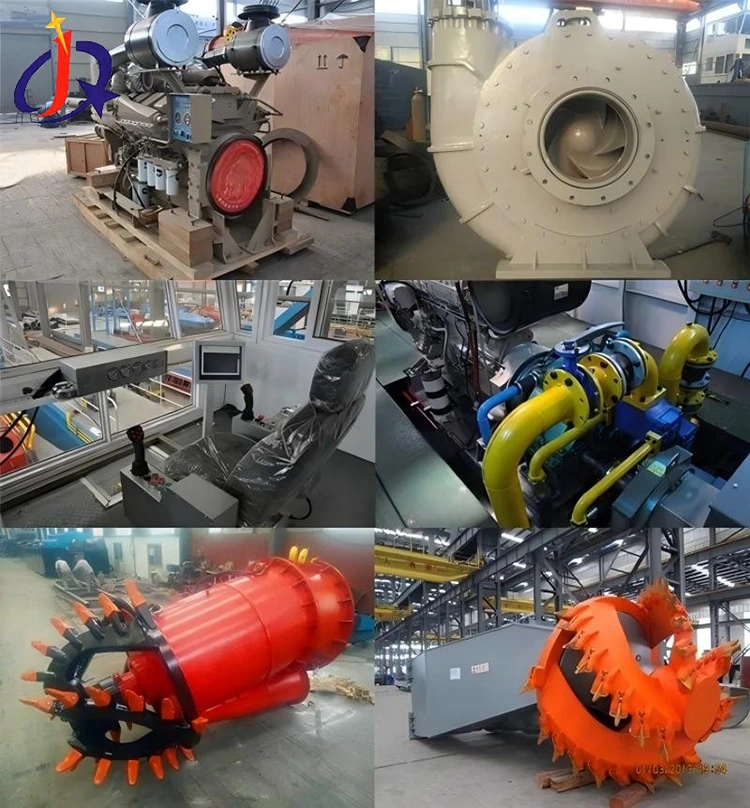

10-inch Cutter Suction Dredger

Isicelo seMveliso

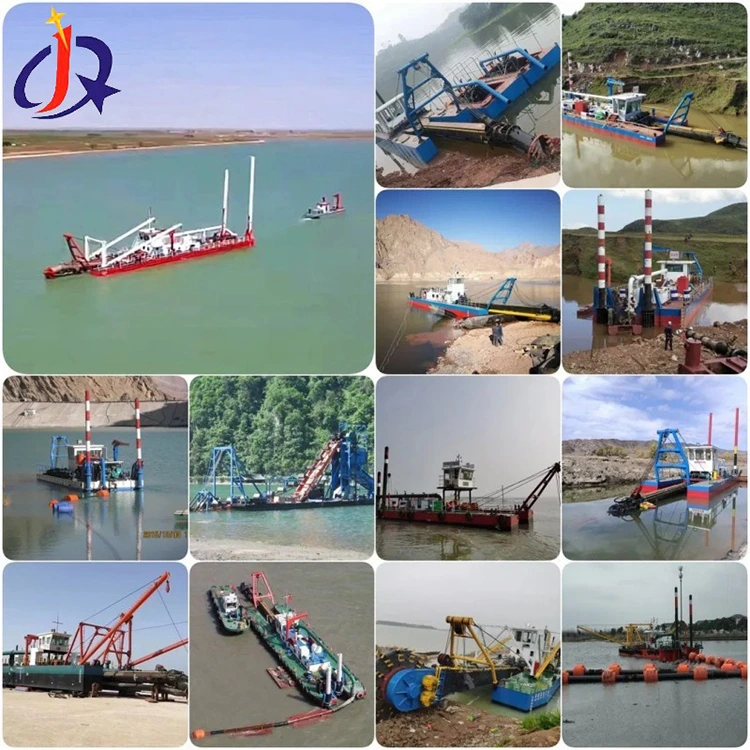

I-10-intshi ye-cutter suction dredger isetyenziswa ikakhulu kwiindawo ezincinci kunye neziphakathi zamanzi. Usetyenziso oluqhelekileyo lubandakanya:

1. Ukuchithwa komlambo kunye nokususwa kwentlenge

2. Ukudilizwa kwamachibi amancinci naphakathi, amachibi kunye namadama

3. Ukugcinwa kokugrumba kwiindawo ezinamanzi angekho nzulu kumazibuko nakwizikhewu

4. Ukumpompa isanti yomlambo kunye nokwembiwa kwesanti

5. Beka imigodi yegolide kunye nokumbiwa kwiilwandle ezingekho nzulu nakwiindawo zemilambo

6. Ukulungiswa kwakhona kwe-hydraulic encinci kunye nokumpompa isanti ye-cofferdam

7. Ukudilizwa kwemijelo yamanzi kunye nokwakhiwa ngokutsha kwechibi leentlanzi

10-inch Cutter Suction Dredger

Ngathi

I-Qingzhou Jinqi Mining Machinery Co., Ltd. ngumvelisi oyingcali wokuqala wezixhobo zokucoca kunye nezixhobo zokutsalwa kwegolide, ukudibanisa i-R&D, uyilo, ukuvelisa, ukuthengisa kunye neenkonzo zenkqubo epheleleyo. Sineziqinisekiso zoyilo lwenqanawa kunye nolwakhiwo, sisebenza ngokukhethekileyo kwimveliso eyenziwe ngokwezifiso kunye nokuphuculwa kobugcisa bezixhobo zehydraulic ezifana ne-cutter suction dredgers, iinqanawa zokurhuqa, izixhobo zokumba igolide kunye nezixhobo zokususa intlenga.

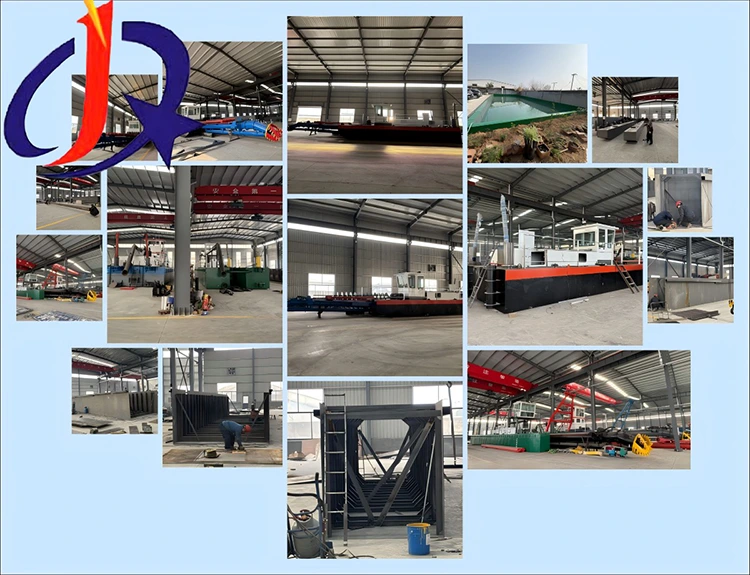

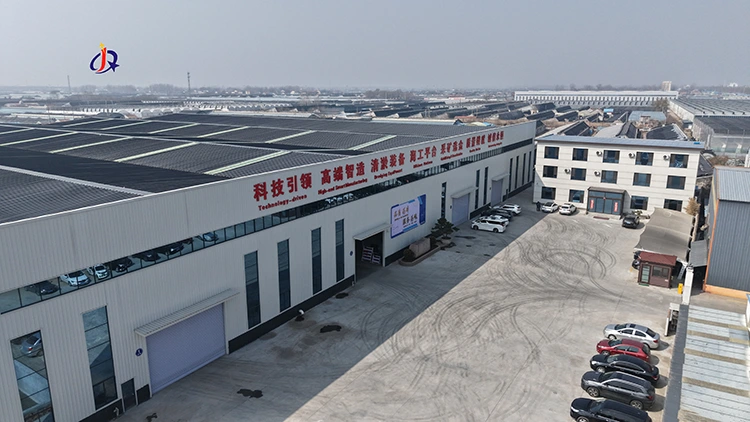

Ngokusekwe kwibhanti yokuvelisa iQingzhou kwiPhondo laseShandong, inkampani ineworkshop yokuvelisa imveliso ye-20,000-square-square-meter kwaye isebenzisa ngokungqongqo inkqubo yolawulo lwekhwalithi ye-ISO9001. Ukuqwalasela uzinzo, ukuqina, ukusebenza kakuhle okuphezulu, ukonga amandla kunye nokuguquguquka okuqinileyo, siye saphuhlisa uluhlu olupheleleyo lweemveliso ezibandakanya i-cutter suction dredgers, ezisetyenziswa ngokubanzi kumlambo, ukuchithwa kwechibi, ukugcinwa kwezibuko, ukulungiswa kwe-hydraulic, imigodi yesanti yomlambo, i-placer yokukhutshwa kwegolide kunye nezinye izicelo.

Njengomzi-mveliso wezinto ezibonakalayo, sibambelela kubuchule obutsha kunye nokubaluleka komgangatho. Sinokubonelela ngezisombululo ezilungelelanisiweyo ngokweepropati zentsimbi yabathengi, iimeko zomhlaba, iimfuno zemveliso kunye nohlahlo lwabiwo-mali, ukubonelela ngeenkonzo zokumisa enye ezigubungela uphando lwendawo, ukuyila inkqubo, imveliso kunye nokuveliswa, ukufakela kunye nokugunyazisa, uqeqesho lobugcisa, kunye nenkxaso yokuthengisa emva kokuthengisa ubomi bonke.

10-inch Cutter Suction Dredger

Le vidiyo ingezantsi ibonisa umsebenzi osebenzayo wokutsalwa kwegolide ngokudibanisa i-cutter suction dredger eveliswe nguMatshini weMigodi we-Qingzhou Jinqi kunye neyunithi yokwembiwa kwegolide elunxwemeni kunye nesixhobo sokucoca.

Okwangoku sinee-intshi ezili-10 zee-intshi zokusika zokufunxa ii-dredger kwisitokhwe kwindawo yethu yokusebenzela. Ukuba unomdla ekuthengeni, nceda uzive ukhululekile ukuqhagamshelana nathi!
